Straight-grip Grinder (compressed air)

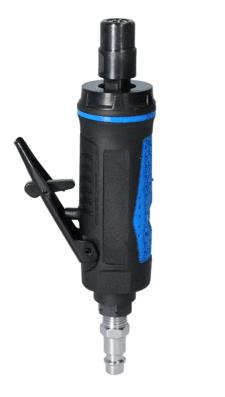

VIGOR Die grinder ∙ straight design ∙ V5672 ∙ 203 mm •Cutter, cutting wheels, grinding pads with 3 and 6 mm collet chuck





•Dimensions / length: 203 mm

•Net weight: 0.54 kg





•Air requirement: 128.2 l/min

•Coupler plug: Nominal size 7.2 (included)

•Air connection inlet: Inside thread 12.91 mm (1/4″)

•Revolutions per minute (max.): 22000 upm

•Working pressure (bar): 6.3 bar

•Handle: Cold insulated handle

•Sound pressure level: 97.1 dB(A) Lp A

•Sound power level: 86.1 db(A) Lp W

•Hose diameter (recommended): 10 mm

•Vibration acceleration: 2.90 m/s2

Application: HAZET Mini disc sander ∙ angled 9033M-11 For processing surfaces even in hard to reach work areas, e.g. for removing rust, stripping paint, removing adhesive and sealing residues, as well as for cleaning/processing surfaces, weld seams, etc. using various abrasive media

•Heavy-duty multi-bearing gearbox with a 2.5-times longer service life compared to conventional gearboxes

•Optimised for spot repairs

•Roloc® quick-change system: Combine with many abrasive media Fast, tool-free, easy change of abrasives

•Grinding disc diameter: 50 mm

•Grinding disc thread: 1⁄4 inch– 20 UNF

•Exhaust air is guided through the handle

•Air connection inlet: Inside thread 12.91 mm (1/4″)

•Coupler plug: Nominal size 7.2 (included)

•Hose diameter (recommended): 10 mm

•Working pressure (bar): 6.3

•Sound power level: 95.2 db(A) Lp W

•Vibration acceleration: 1.80 m/s2

•Power in watts: 224 Watt

•Cold insulated handle

•Dimensions / length: 126 mm

•Net weight: 0.44 kg

•Sound pressure level: 84.2 dB(A) Lp A

•Revolutions per minute: 18000

•Air requirement: 84 l/min (1.4 l/sec)

Range of “Mini” pneumatic tools

•Innovative 5-slat concept for even more power than conventional drives

•High reliability and continuous operation

Engine bridge, 500 kg •Can be used as a workbench / work table, step stool, workshop dolly or transport roller

•Height adjustable with just a few movements

•Work surface for turning with various work aids

•Practical carry handle for convenient transport

•When folded the workbench can be stored in a space-saving manner

•TÜV certified



Use as workbench / work table:



•Load capacity (max.): 150 kg

•Dimensions: 117 x 52 x 79.5 cm (L x W x H)

•Length and angle dimensions printed on the work surface

•Drill holes and slots on the side for the convenient storage of tools, such as pliers and screwdrivers, for example

•Centred hole in the middle of the protractor for drilling work

•Stable hammering and cutting surface at the side of the work surface



Use as a step stool:



•Load capacity (max.): 150 kg

•Dimensions: 107 x 52 x 55 cm (L x W x H)

•Ribbed plastic bottom ensures a secure footing

•Suitable as a pedestal for reaching hard-to-reach spots, for example during renovation work



Use as transport roller:



•Load capacity (max.): 120 kg

•Dimensions: 89 x 52 x 12.5 cm (L x W x H)

•Ribbed plastic bottom ensures secure grip of the load

•Laterally integrated drill holes for attaching snap hooks for a tension cable if you want to move heavy objects

•4 rollers, of which two are steerable castors and two are fixed castors

•Suitable for the transport of heavy and bulky objects



Use as workshop dolly:



•Load capacity (max.): 120 kg

•Dimensions: 89 x 52 x 12.5 cm (L x W x H)

•Suitable for the performance of repair and mounting work that is performed while lying down

•Suitable as a rolling workshop for putting things down or as a laying roller (e.g. for tiles or laminate)



The BRILLIANT TOOLS 4-in-1 universal workbench BT180000 can be used everywhere. Thanks to the height-adjustable feet it can be converted as quick as lightning from a functional work table to a stable step stool, transport roller or a dolly. The lever fasteners attached at the sides allow the platform to be used in parallel, depending on the application. If you do not require the universal workbench any more, just stow it in a space-saving manner in the workshop or the garage.

Extra long TORX® screwdriver set, 5 pcs •9-piece set

•All to open a car door from the outside

•Ideal for recovery services, garages, key services, security services and emergency services



The BRILLIANT TOOLS vehicle door opener set BT511000 provides everything you need to open a car door from the outside. True connoisseurs long for effective solutions – You forgot your keys in the car?That’s not a problem with this set!This is ideally suited for truck workshops, key services, security services and emergency services Contents: 1 x plastic strip for doorknobs1 x Universal fuel pump key2 x plastic wedges1 x small opener plate1 x wide opener plate1 x door opener wire S-Form1 x door opener wire1 x universal door opener wire

Trim removal set, 6 pcs •6-piece set

•Various shapes for work on trim mouldings, rubber seals, door panels, switches, etc.

•Can also be used for difficult to reach areas

•Made of glass-fibre reinforced plastic



The BRILLIANT TOOLS trim wedge upholstery set BT511015 is a practical helper for disassembling trim mouldings, rubber seals, door panels, switches, etc. The 5 differently shaped wedges allow it to be used in difficult to reach areas. The plastic pliers are excellently suited for extracting clips. All 6 tools are made of glass-fibre reinforced plastic. This makes them stable and flexible.

•Ideal for use in workshops, garages or the garden

•With automatic winding stop which can be unlocked by briefly pulling on the cable

•High-quality, closed special plastic housing

•With 180° wobble wall bracket for individual installation at the workstation

•Including 1.0 m supply cable

•Suitable for 230 V voltage



If the nearest power socket is not close by, the power cables lie all over the workshop or the hobby room, become stumbling blocks or cause cable spaghetti. But there is a practical solution - the BRILLIANT TOOLS automatic cable reel BT162000 which is attached to the ceiling or the wall. Make the best use of your air space and always have a power cable to hand. There is still space to the top – with the cable reel you always have a flexible power source to hand. The cable drum consists of a 1 m long power cable for the socket and a 15 m long cable with a plug connection for your devices which can be pulled from the drum, depending on your requirements. The automatic cable drum can be attached with a holder to the ceiling or a wall, depending on the spatial situation in your rooms. This way you have a flexible power source which does not have to be laid awkwardly around the floor. The power cable can be pulled from the drum easily and in accordance with your requirements. It has two to three fixture points per metre with which the length of the cable can be determined. Since the cable drum is mounted on the ceiling or a wall, you can also use the power cable for the workspaces which are at the opposite end of the room and then only have to secure the length accordingly. Rolling up extension cables by hand takes practice and even on mechanical cable drums, the power cables often twist. But storing the cable can be so easy. With the spring-loaded retraction mechanism, the cable disappears into the drum in no time. With the automatic cable reel, you ensure order and safety in your hobby room and always have a flexibly usable power source at hand while simultaneously avoiding cables left lying around. And if you only occasionally require an additional power source, the power cable remains safe and protected in the drum until its next use. The automatic cable drum is also designed for use in professional workshops. Technical data:

Cable length: 15 m + 1 m supply cableCable cross-section: 3 x 1.5 mm²Cable type: HO5VV-F1.5 mm²Load capacity rolled up: 1,000 W / 230 VLoad capacity unrolled: 3,000 W / 230 V Standard: YesProtection class: IP 44Length: 29,5 cmWidth: 16,5 cmHeight: 33 cmNet weight: 4.5 kgGross weight: 5.6 kg

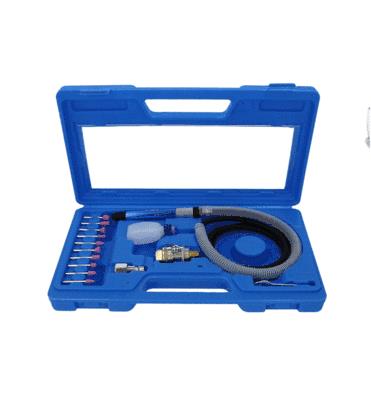

VIGOR Die grinder set ∙ mini ∙ V6906 •Straight design

•Small design for areas with restricted access

•For grinding, polishing or deburring

•Including 3 and 6 mm collet chuck

•Exhaust air is guided downwards through the handle

•Including 10-piece grindstone set V6906-10

•Contents: grindstone designs, 10 pieces:

•Ball: ⌀ 12 and 22 mm

•Round cone: ∅ 12 and 13 mm

•Cone: ∅ 12 ∙ 13 and 24 mm

•Cylinder: ∅ 12 and 24 mm

•Flat cone: ∅ 19 mm





•Net weight: 0.31 kg





•Air requirement: 85 l/min

•Coupler plug: Nominal size 7.2 (included)

•Air connection inlet: Inside thread 12.91 mm (1/4″)

•Revolutions per minute (max.): 25000 upm

•Working pressure (bar): 6.3 bar

•Handle: Cold insulated handle

•Sound pressure level: 102 dB(A) Lp A

•Sound power level: 91 db(A) Lp W

•Hose diameter (recommended): 10 mm

VIGOR Die grinder ∙ angled ∙ V5673 ∙ 206 mm •Cutter, cutting wheels, grinding pads with 3 and 6 mm collet chuck





•Dimensions / length: 206 mm

•Net weight: 0.45 kg





•Air requirement: 85.5 l/min

•Coupler plug: Nominal size 7.2 (included)

•Air connection inlet: Inside thread 12.91 mm (1/4″)

•Revolutions per minute (max.): 20000 upm

•Working pressure (bar): 6.3 bar

•Handle: Cold insulated handle

•Sound pressure level: 101.6 dB(A) Lp A

•Sound power level: 99.1 db(A) Lp W

•Hose diameter (recommended): 10 mm
